Fish acoustic receiver network

As part of the Belgian LifeWatch observatory, a permanent acoustic receiver network for fish tracking is established in the Belgian Part of the North Sea and the Western Scheldt estuary.

Acoustic telemetry

Using acoustic telemetry distribution, movements and habitat use of tagged migratory fish can be tracked. Tags or transmitters are surgically implanted in the belly of individual fish; and acoustic receivers are installed on buoys, ship wrecks and river banks. When a fish swims in the vicinity of an acoustic receiver, the information of the unique ID-code of the transmitter is stored on the receiver together with an exact timing of the event. When signals are simultaneously received by multiple receivers, an exact positioning of the tagged individuals can be derived from the raw data.

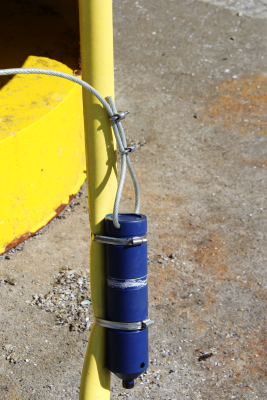

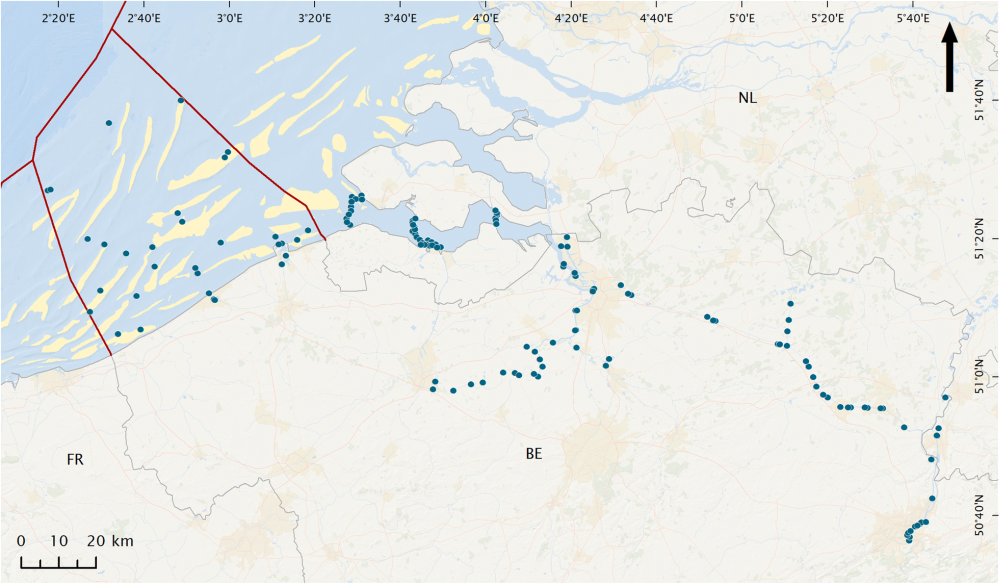

Left: location of acoustic receivers in the Western Scheldt estuary and the Belgian coastal area - Top right: acoustic receivers (©VLIZ) - Bottom right: mooring of the acoustic receivers on buoys (©Jan Reubens)

The permanent acoustic receiver network is maintained as a LifeWatch research infrastructure that allows studies on migration patterns of several migratory fish species. Since the start of the network in 2014, over 800 animals have been tagged. For marine, coastal and estuarine systems, Atlantic cod (Gadus morhua L.), was initially the model species, while in Belgian rivers European eel, (Anguilla anguilla L.), was representative for catadromous downstream migration.

So far, 16 species have been detected on the network. Other detected species are:

Setting up the fish acoustic receiver network is a cooperation between the Flanders Marine Institute (VLIZ), the Research Institute for Nature and Forest (INBO), and the Ghent University - Marine Biology Research Group (UGent-MARBIOL).



Receivers

Currently (situation end 2018), a total of 164 receivers are installed on buoys, ship wrecks and river banks in the Belgian tidal areas: 25 in the Belgian Part of the North Sea, 39 in the Western Scheldt (Westerschelde), and 40 in the Sea Scheldt (Zeeschelde) from Antwerp to Ghent, 43 in the Albert Canal and 16 in the Meuse river.

Prior to 2016, the LifeWatch Acoustic Fish Tracking Network was part of the Belgian Fish Tracking Network, which spanned a larger area, included more acoustic receivers and tags, and tracked additional fish species. This overarching fish tracking network, which was initiated by the INBO in 2012, is currently tracking over 800 fishes from 13 different species with 190 active receivers. In 2016, the entire Belgian Fish Tracking Network was included within LifeWatch.

Several types of receivers are being used:

  • Type VR2W: “classic” receiver: This receiver type is installed on buoys, and needs to be read out manually in the field to obtain the data, which is done on a seasonal basis. This is the case for the majority of the receivers within the LifeWatch network.
  • Type VR2AR: receiver with acoustic release: This receiver type is placed at the sea floor. With device deck unit (VR100) you can make contact with the receiver from the ship, check if the receiver detected any fish, and release the receiver to the surface if this is indeed the case. The advantages of this receiver type is that you are not dependent on surface floats to deploy the receiver, and that no diving is needed to recover the devices. When the receiver did not detect any fish, you can leave it in place at the sea floor, and move on to the next receiver, which saves a lot of time.
  • Type VR2TX: This receiver type is similar to type VR2AR, but does not have the acoustic release function, so diving is required to recover the devices. You can also use the VR100 device to check if the receiver detected any fish. If not, the receiver can be left at the sea floor.
  • Type VR2C: receiver with real-time data flow.



Example: Atlantic cod

Atlantic cod (Gadus morhua Linnaeus, 1758) is a species with high commercial value. However, as fishing pressure has been very high for decades, population levels dropped in the 80s and have ever since been at very low levels. Although fishing pressure is strongly reduced nowadays, the population in the North Sea has not yet recovered. Information on ecology, migration routes and habitat preferences is crucial to support and give advice on efficient, long-term management plans for the recovery of Atlantic cod. This telemetry study in the framework of LifeWatch will help to gather the information needed.

So far 166 individual cods were tagged. Some data visualizations can be seen here.

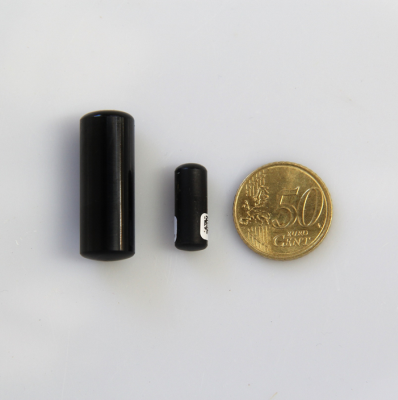

Left: fish tag (©Jan Reubens) - Middle: tagging of a cod (©Karl Vanginderdeuren) - Right: tagging of a cod (©Jan Reubens)



Example: European eel

The European eel (Anguilla anguilla (Linnaeus, 1758)) is a critically endangered fish species, the recruitment of which has declined by 90 – 99% since the 1970s. In order to stop the decline of the endangered European eel, all European countries are obliged to set up an eel management plan and support this with scientific data. Particularly downstream eel migration, when maturing eels migrate from their freshwater habitat to the open ocean, is thought to be a critical phase in the eel's life cycle. On their way to the ocean, eels have to face several challenges such as sluices and pumping stations. We need to understand how these barriers affect the chances of eels to reach the sea, to reveal whether constructions such as fish passages indeed have a positive impact and to create innovative solutions to facilitate migration.

Furthermore, many fundamental knowledge gaps in the eels’ complex lifecycle still exist. As an example, the exact location of the spawning grounds, and the marine migration routes to the presumed spawning grounds in the Sargasso Sea, have not yet been elucidated. Mapping these routes and understanding the migration behavior can teach us how eels handle their available bio-energy budgets for successful spawning, and what potential bottlenecks (e.g. effects of pollution, non-native parasites and delays near migration barriers) may jeopardize successful migration and consequently spawning. In order to restore the European eel population, it's crucial to understand the behavior, habitat use and migration patterns of the eel.

To address some of the above-mentioned knowledge gaps, the Flanders Marine Institute (VLIZ), the Research Institute for Nature and Forest (INBO) and Ghent University tag eels with acoustic transmitters, which can be detected by the elaborated acoustic tracking network and pop-off data storage tags (pDSTs) in the framework of the European LifeWatch project. The pDSTs record temperature and pressure and pop off after a predefined time (6 or 12 months). If you would find a tag, please contact us (Pieterjan.Verhelst@UGent.be or jan.reubens@vliz.be) so we can retrieve the tag and the valuable information it contains.

So far 392 European eels have been tagged with acoustic tags and 24 with pDSTs in the LifeWatch network.





Left: measurement of an eel before tag implantation (©INBO) - Middle: tagging of an eel (©Pieterjan Verhelst) - Right: installment of an acoustic receiver (©INBO)

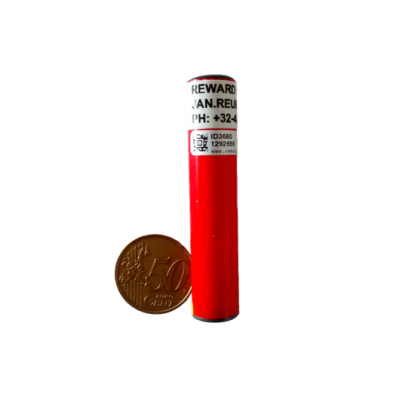

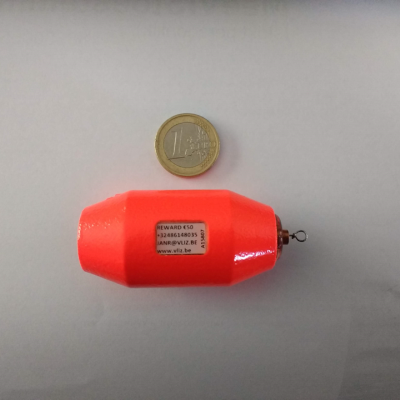

Left: Pop-up data storage tag (©Pieterjan Verhelst) - Right: Eels tagged with the pop-up data storage tags (©Pieterjan Verhelst)



Most recent publications

  • Reubens, J.; Verhelst, P.; van der Knaap, I; Deneudt, K.; Moens, T.; Hernandez, F. (2018). Environmental factors influence the detection probability in acoustic telemetry in a marine environment: results from a new setup. Hydrobiologia Online: 1–14. https://hdl.handle.net/10.1007/s10750-017-3478-7 (more)

  • Verhelst, P.; Bruneel, S.; Reubens, J.; Coeck, J.; Goethals, P.; Oldoni, D.; Moens, T.; Mouton, A. (2018). Selective tidal stream transport in silver European eel (Anguilla anguilla L.) – Migration behaviour in a dynamic estuary. Est., Coast. and Shelf Sci. 213: 260-268. https://hdl.handle.net/10.1016/j.ecss.2018.08.025 (more)

  • Verhelst, P.; Baeyens, R.; Reubens, J.; Benitez, J.-P.; Coeck, J.; Goethals, P.L.M.; Ovidio, M.; Vergeynst, J.; Moens, T.; Mouton, A.M. (2018). European silver eel (Anguilla anguilla L.) migration behaviour in a highly regulated shipping canal. Fish. Res. 206: 176-184. https://hdl.handle.net/10.1016/j.fishres.2018.05.013 (more)

  • Verhelst, P.; Buysse, D.; Reubens, J.; Pauwels, I.; Aelterman, B.; Van Hoey, S.; Goethals, P.; Coeck, J.; Moens, T.; Mouton, A.M. (2018). Downstream migration of European eel (Anguilla anguilla L.) in an anthropogenically regulated freshwater system: Implications for management. Fish. Res. 199: 252-262. https://hdl.handle.net/10.1016/j.fishres.2017.10.018 (more)

  • Verhelst, P.; Reubens, J.; Pauwels, I.; Buysse, D.; Aelterman, B.; Van Hoey, S.; Goethals, P.; Moens, T.; Coeck, J.; Mouton, A. (2018). Movement behaviour of large female yellow European eel (Anguilla anguilla L.) in a freshwater polder area. Ecol. Freshw. Fish. 27(1): 471-480. https://hdl.handle.net/10.1111/eff.12362 (more)
